Electric Lock Cylinder 8V Motor Driven Zinc Alloy IP66 for Logistic Locker

Brand Name : KERONG

Model Number : KR-S98E

Certification : CE/RoSH/FCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 50,000 pieces per month

Delivery Time : 5-15 days working time

Packaging Details : The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN or customize according to customers' requirements

Product Name : Waterproof Logistics Locker Lock

Model : KR-S98E

Material : 430 stainless steel+ABS+PC

Power consumption : 0.75W

Working Voltage & Current : 3.5V-8V

Working Current : 100mA@5V

Size : 98*66*13.3 mm

Hook Weight : 175g

Surface treatment : Passivation

Response time : Less than 300ms

Contact Now

Electric Lock Cylinder 8V Motor Driven Zinc Alloy IP66 for Logistic Locker



Product parameters

Model KR-S98E
Size 98*66*13.3 mm
Name Waterproof Logistics Locker Lock
Weight 175g
Material  430 stainless steel+ABS+PC
Working voltage DC3.5V~DC8V
Working current 100mA@5V
Maximum power 0.75W
Response time Within 300ms
Working temperature -40℃ ~ +65℃
Working humidity 5% ~ 85%RH
Working life 500,000 times
Door weight 4KG~50KG
Test Salt spray testing 48 hours
Application Parcel cabinet / Freeze locker/Vending machine etc
Certification CE; FCC; RoHS
OEM Accepted



Product  Main Features

1. More stable and lower power consumption because of the motor drive. And support 12V & 24V.

2. Lock shells are made from deactivated 430 stainless steel, force resistance: 300kgs.

3. All electronic parts are protected in the sealed ABS box. IP66 Waterproof. Can be waterproof.

4. Built-in push block helps push the door, thrust can be adjusted.

5. AWG24 wires with PVC protecting tube.

6. Can be unlocked manually in the condition of power failure with Mechanical emergency lever.

7. Lock hook detection function.

8. Customizing wires and terminals is available.



Product Details

Electric Lock Cylinder 8V Motor Driven Zinc Alloy IP66 for Logistic Locker

Electric Lock Cylinder 8V Motor Driven Zinc Alloy IP66 for Logistic Locker



Lock Hook Options





Hook Model



 Base Thickness Height Weight



A



 Flat 3.0mm 30mm 11.0g



E



 Arch 3.0mm 31.5mm 11.4g

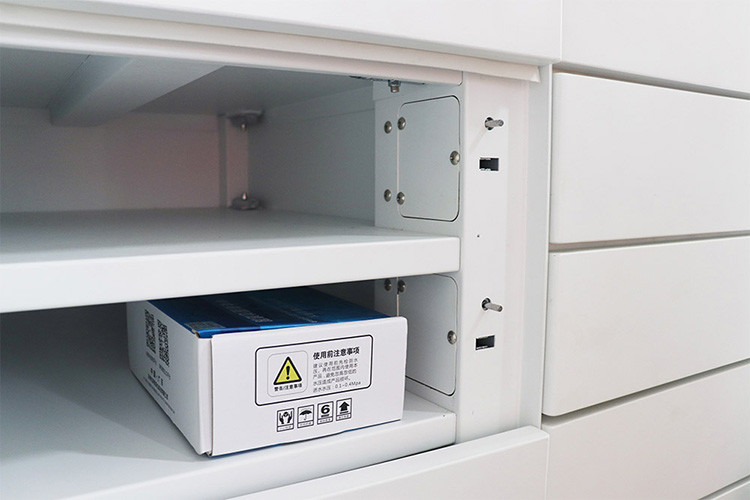

Product Applications

  Our products KR-S98E electronic locker lock is applied in express cabinets, vending kiosk locker, fresh lockers, depository cabinets, etc.

  Electric Lock Cylinder 8V Motor Driven Zinc Alloy IP66 for Logistic Locker
